Stifle
Radiographic Anatomy of the Stifle

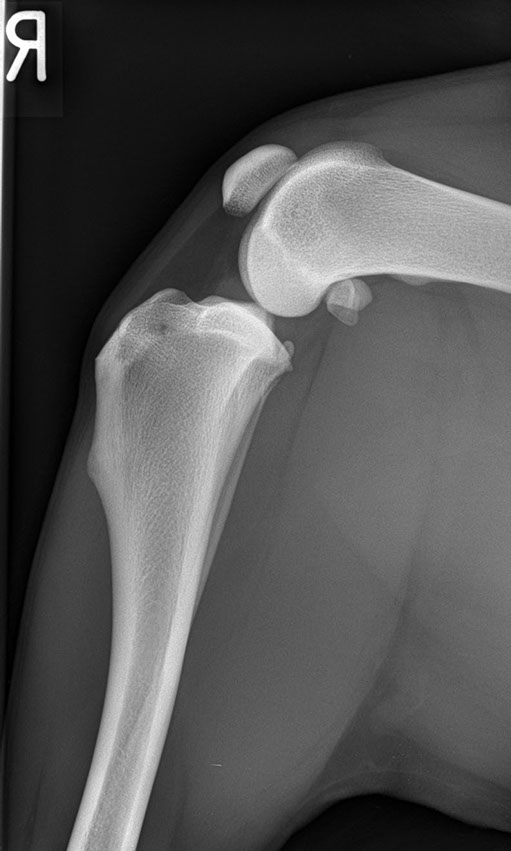

Medio-lateral projection
Click on the circles to see the answer
Patella
Is the largest sesamoid bone in the body.
The patella articulates with the articular surface of the trochlea of the femur. This is the sesamoid bone associated with the tendon of the m. quadriceps femoris
Infrapatellar fat body
Patellar ligament
Sesamoid bones in the medial and lateral head of gastrocnemius muscle
Sesamoid bone of popliteus muscle
Tibial tuberosity
Femoral condyles
Superimposed ridges of femoral trochlea
Fibula
Radiographic Anatomy of the Stifle

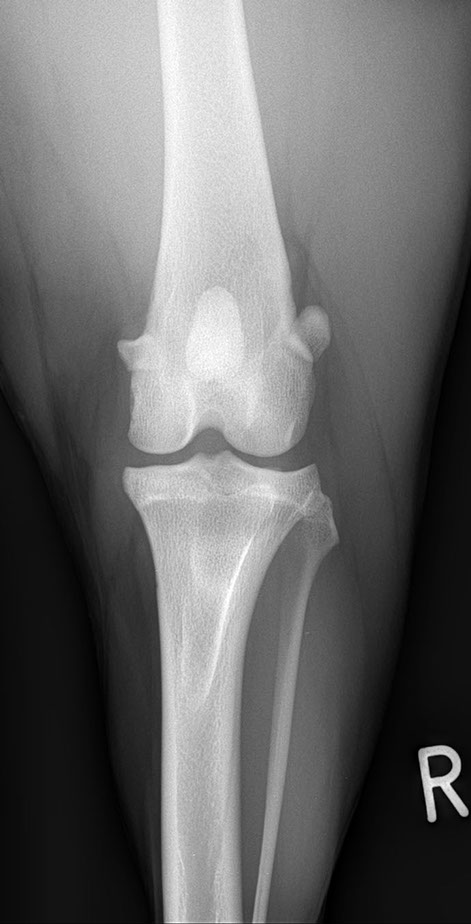

Caudo-cranial projection
Click on the circles to see the answer
Medial sesamoid bones in the medial and lateral head of gastrocnemius muscle
Head of fibula
Cranial border of tibia
Lateral tubercle of intercondylar eminence
Patella
Is the largest sesamoid bone in the body.
The patella articulates with the articular surface of the trochlea of the femur. This is the sesamoid bone associated with the tendon of the m. quadriceps femoris
Medial femoral condyle
Medial tubercle of intercondylar eminence
Intercondylar fossa of Femur
Lateral condyle of tibia
Computed Tomography Anatomy of the Stifle
Dorsal plane
Click and drag to go through the study. Position your cursor over the structures to see anatomical labels
- Femur
- Tibia
- Patella
- Patellar ligament
- Tibial tuberosity
- Trochlea of femur
- Lateral condyle of femur
- Medial condyle of femur
- Sesamoid (Sesamoid bones in the medial and lateral head of gastrocnemius muscle)
- Fibula
- Lateral condyle of tibia
- Medial condyle of tibia
- Sesamoid in popliteus muscle
- Medial intercondylar tubercle
- Lateral intercondylar tubercle
Computed Tomography Anatomy of the Stifle
Sagittal plane
Click and drag to go through the study. Position your cursor over the structures to see anatomical labels
- Femur
- Tibia
- Patella
- Patellar ligament
- Tibial tuberosity
- Trochlea of femur
- Lateral/Medial condyle of femur
- Sesamoid (gastrocnemius muscle)
- Fibula
- Lateral/Medial condyle of tibia
- Sesamoid in popliteus muscle
- Medial/Lateral intercondylar tubercle
- Medial/Lateral epicondyle
- Cranial cruciate ligament
- Caudal cruciate ligament
- Intercondylar eminence
3D Reconstruction of the Stifle
Click and drag to rotate the 3D object
Click on labels to see annotations
