Spine
Radiographic Anatomy of the cervical spine
(myelography)
Latero-lateral and ventro-dorsal projections
Click on the circles to see the answer
Dorsal arch of atlas
Spinous process of axis
Ventral arch (body) of atlas
Synovial articulation between C3 and C4
Spinous process of C6
Transverse process of axis
Intervertebral disc space between atlas and C3
Dens
Vertebral arch of C4
Transverse process of C6
First rib
Transverse process (wing) of atlas
Dens
Occipital condyle
Atlantoaxial joint
Transverse process of axis
Spinous process of C6

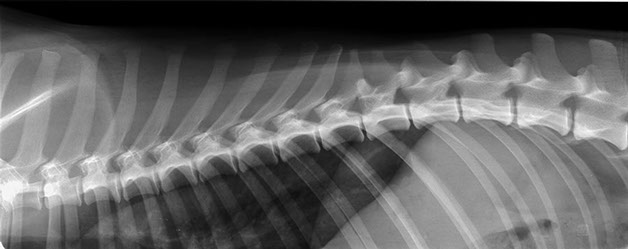

Radiographic Anatomy of the thoracic spine
(myelography bottom image)
latero-lateral projection
Click on the circles to see the answer
Synovial joint between the caudal articular process of T9 and the cranial articular process of T10
First rib
Spinous process T1
Intervertebral space between T4 and T5
Intervertebral foramina between T3 and T4
T11: anticlinal vertebra
Radiographic Anatomy of the thoracic spine
(myelography right image)
latero-lateral projection
Click on the circles to see the answer
3rd rib (right)
Spinous process of T1
Articulation of the head of the rib 7 (left) with the body of T6 and T7

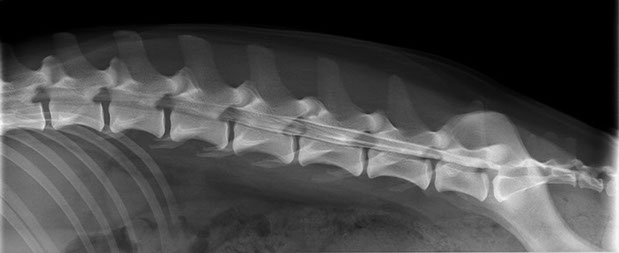

Radiographic Anatomy of the lumbar spine
(myelography bottom image)
latero-lateral projection
Click on the circles to see the answer
Body of L1
Body of L7
Inter-vertebral disc space between L2-3
Spinous process of L3
Transverse process of L4
Intervertebral foramina between L4-5
Synovial joint between the caudal articular process of L5 and the cranial articular process of L6
Sarum
Mamillary process of the cranial articular process of L3
Radiographic Anatomy of the lumbar spine
ventro-dorsal projection
Click on the circles to see the answer
Transverse process of L2 (left)
Spinous process of L1
Synovial joint between the caudal articular process of L2 and the cranial articular process of L3 (right)
Sacroiliac Joint
Lumbosacral intervertebral disc
Computed Tomography of the lumbar spine
Axial plane
Drag the circle along the time-line to go through the CT scan
Computed Tomography of the thoracic spine
Sagittal plane
Drag the circle along the time-line to go through the CT scan- no labels
Computed Tomography of the thoracic spine
dorsal plane
Drag the circle along the time-line to go through the CT scan- no labels
Computed Tomography of the lumbar spine
Sagittal plane
Drag the circle along the time-line to go through the CT scan- no labels
Computed Tomography of the thoracic spine
dorsal plane
Drag the circle along the time-line to go through the CT scan- no labels
Dr Mariano Makara
Dip. ECVDI
