Carpus and Forepaw (manus)
Radiographic Anatomy of the Carpus and Forepaw

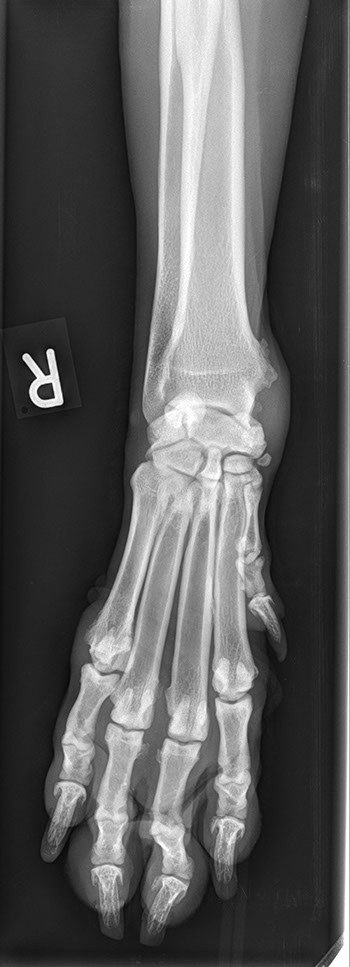

Dorso-palmar Projection

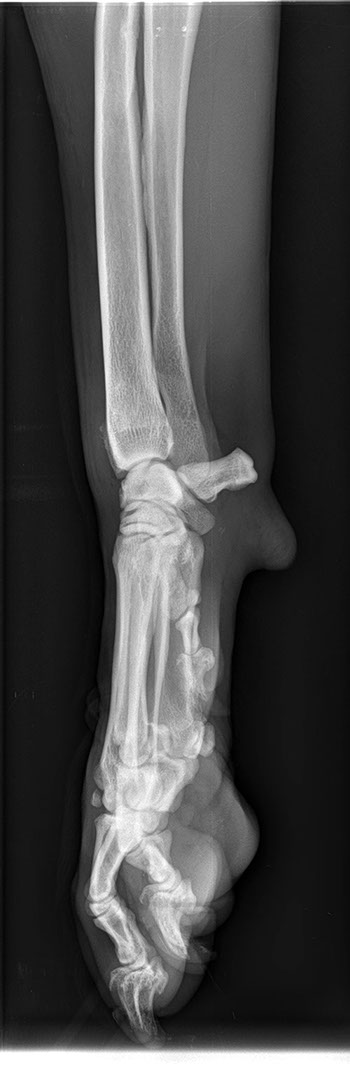

Medio-lateral Projection
Fourth Carpal Bone
Second Carpal Bone
Metacarpal Bone V
Third Carpal Bone
Metacarpal Bone IV
Radial Carpal Bone
Ulnar Carpal Bone
Accessory Carpal Bone
Sesamoid Bone in Abductuor digit 1 longus
Metacarpal Bone III
Metacarpal Bone II
Metacarpal Bone I
Styloid Process of Ulna
Ulna
Radius
Axial Proximal Sesamoid Bone of Digit II
Distal Phalanx of Digit II
Proximal Phalanx of Digit III
Middle Phalanx of Digit IV
Accessory Carpal Bone
Radius
Ulna
Superimposition metacarpal Bones
Ulnar Carpal Bone
Click on the circles to see the answer
Computed Tomography Anatomy of the Carpus and Forepaw
Sagittal Plane
Click and drag to go through the study. Position your cursor over the structures to see anatomical labels
- Radius
- Ulna
- Accessory Carpal Bone
- Ulnar Carpal Bone
- Radial Carpal Bone
- Second Carpal Bone
- Third Carpal Bone
- Fourth Carpal Bone
- First Carpal Bone
- Metacarpal Bone I, II, III, IV and V
- Proximal Phalanx Digits I, II, III, IV and V
- Middle Phalanx Digits II, III, IV and V
- Distal Phalanx Digits I, II, III, IV and V
- Sessamoid Bone Metacarpophalangeal Joint
Computed Tomography Anatomy of the Carpus and Forepaw
Dorsal Plane
Click and drag to go through the study. Position your cursor over the structures to see anatomical labels
- Radius
- Ulna
- Accessory Carpal Bone
- Ulnar Carpal Bone
- Radial Carpal bone
- Second Carpal Bone
- Third Carpal Bone
- Fourth Carpal Bone
- First Carpal Bone
- Metacarpal Bone I, II, III, IV and V
- Proximal Phalanx Digits I, II, III, IV and V
- Middle Phalanx Digits II, III, IV and V
- Distal Phalanx Digits I, II, III, IV and V
- Sessamoid Bone Metacarpophalangeal Joint
3D Reconstruction of the Carpus and Forepaw
Click and drag to rotate the 3D object in multiple planes
